SPECIFICATIONS

Auto Leveling: YES

Brand Name: ATOMSTACK

CE Certification: Yes

Certification: CE

File Format: NC, BMP, JPG, PNG, DXF,

Hign-concerned Chemical: None

Input: 100-240V AC, 50/60HZ

Interface Type: USB

Laser electrical power: 40W

Laser output optical power: 5.5-6W

Laser wavelength: 455±5nm

Maximum Print Size: 410*380mm

Operating System: Win XP/Win 7/Win 8/XP/Win 10

Origin: Mainland China

Output: 12V 3A

Power Supply: International Standard Power

Precision: 0.01MM

Slice Software: LaserGRBL/LightBurn

Describe:

1. New magnetic suction filter cover eye protection design: The panoramic magnetic suction filter cover provides excellent protection for your eyes, filtering 97% of strong light. You and those around you do not need to wear goggles, and can also watch laser engraving. Reduce the cost of your goggles and the inconvenience of wearing them. Magnetic suction design is more convenient for cleaning.

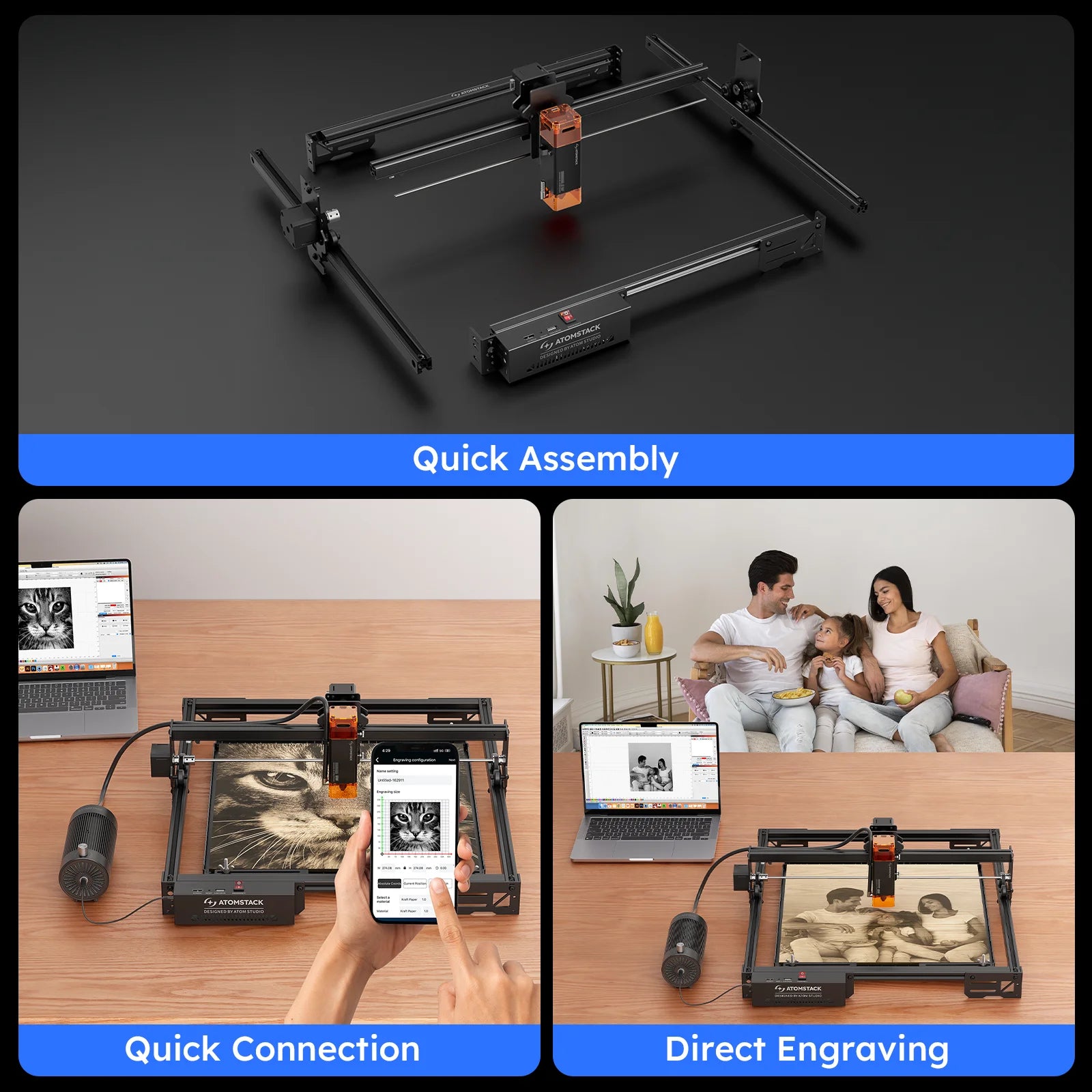

2. Durable and easy to install structural design: The all aluminum alloy anodized structure design makes the machine more sturdy and durable, while also improving the accuracy of engraving. The entire structure has undergone rapid installation design and can generally be installed in 10-20 minutes.

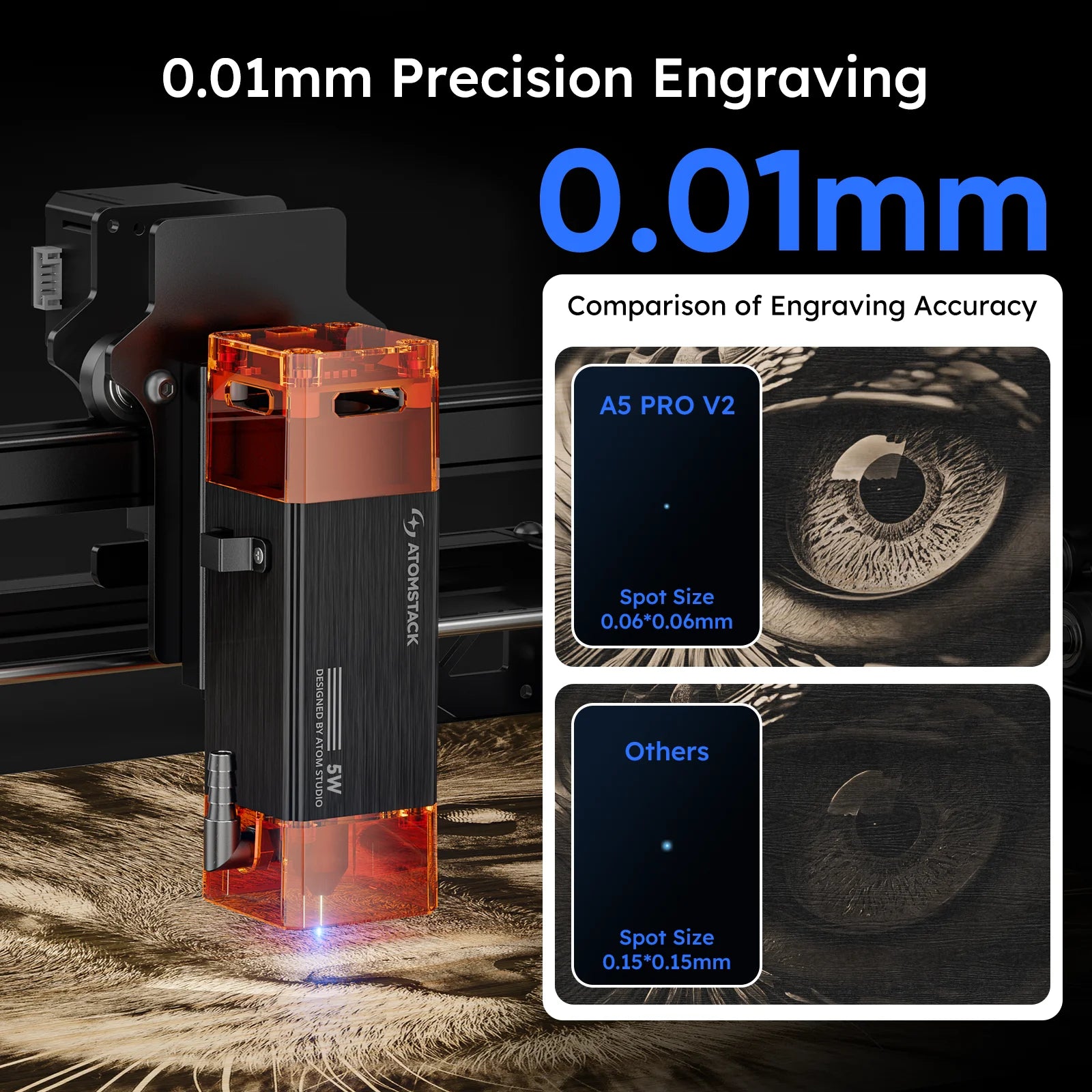

3. Upgraded high-performance fixed focus laser: The new laser has a focal spot area of only 0.06 * 0.06mm, which is one-third of the spot area of other ordinary lasers. It can simultaneously achieve precision engraving and high-energy cutting. At the same time, the laser power of a fixed focus laser is more stable than that of a variable focus laser.

4. Wide compatibility: The machine can be compatible with various mature carving software, such as LaserGRBL LightBurn ， Supports Windows XP/Win 7/Win 8/XP/Win 10, as well as MAc system (LightBurn). The engraving file format supports NC, BMP, JPG, PNG, DXF, etc.

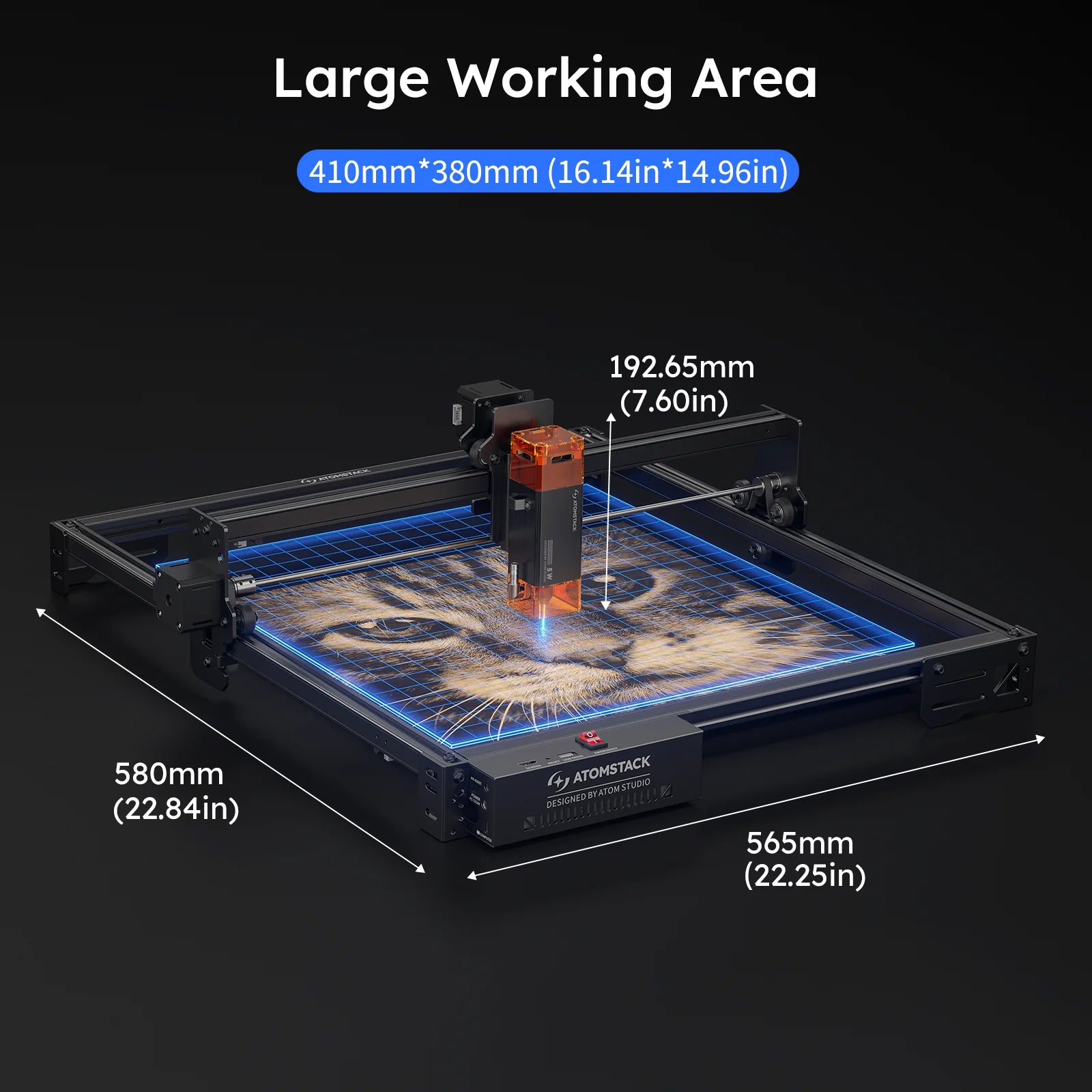

5. Large scale processing: The 410x380mm large area carving interval can meet your various carving needs.

6. Integral screw: The machine adopts an integral screw instead of a combined coupling. The stepper motor and screw are integrated, which makes the movement of the laser more precise and the coupling more durable.

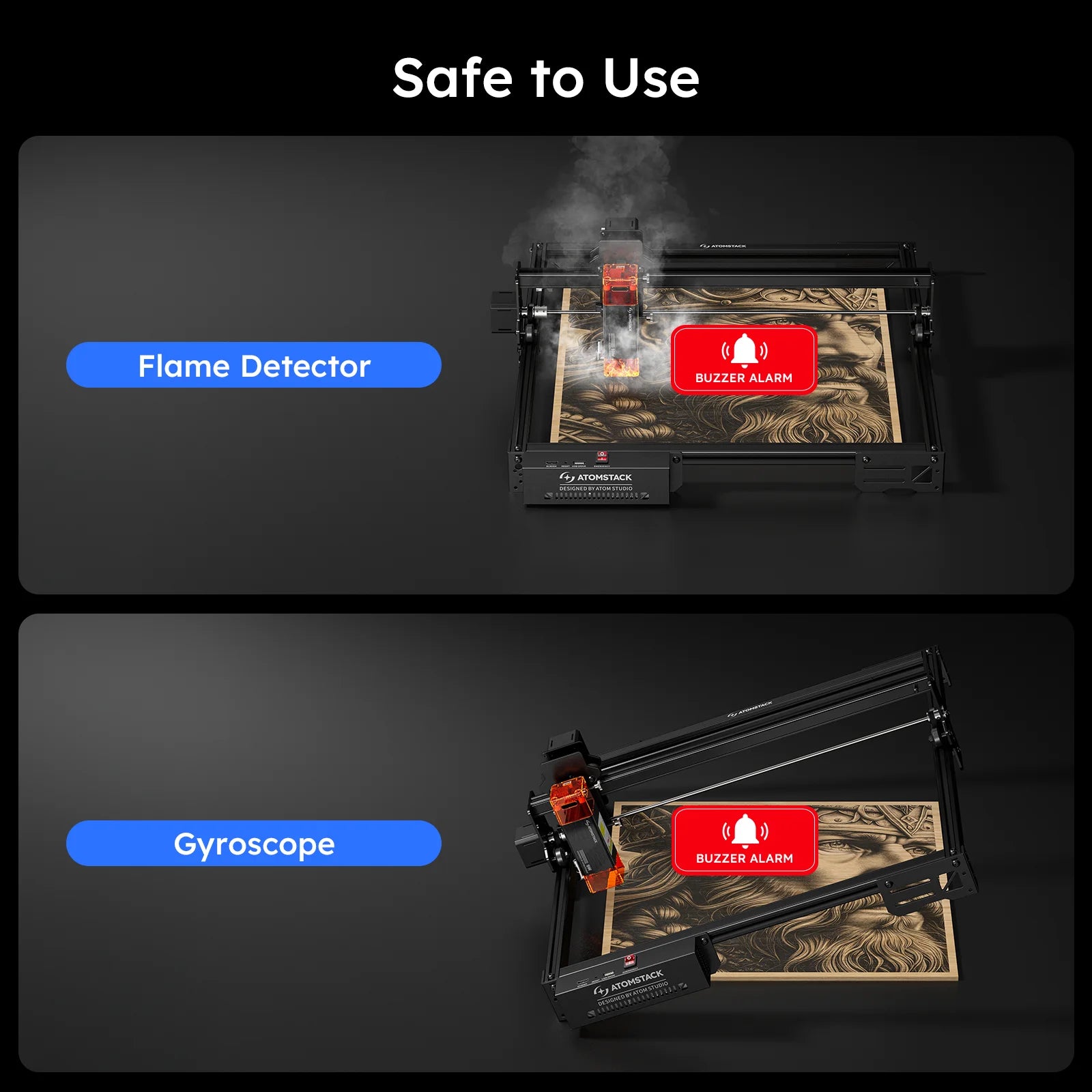

7. Tilt alarm: When the tilt angle of the machine is greater than 15 °, the machine will automatically stop working and emit a buzzing prompt.

8. New generation APP control: ATOMSTACK A5 PRO V2 is compatible with the second generation Atomstack APP, providing a better operating experience and supporting more control functions to achieve offline carving. You can perform carving operations anytime and anywhere without being limited by your computer;

9. Power off carving continuation: With the second-generation APP, the power off carving continuation function can be achieved. If there is an unexpected power outage and the work stops, the carving can continue in the original position (the relative position between the carving machine and the working object needs to be kept unchanged)

10. Laser sintering temperature can reach up to 600 ℃

11. Scalable carving size: The modular design of the body mechanism allows for a large carving size of 410 * 850mm by simply replacing the frame components.

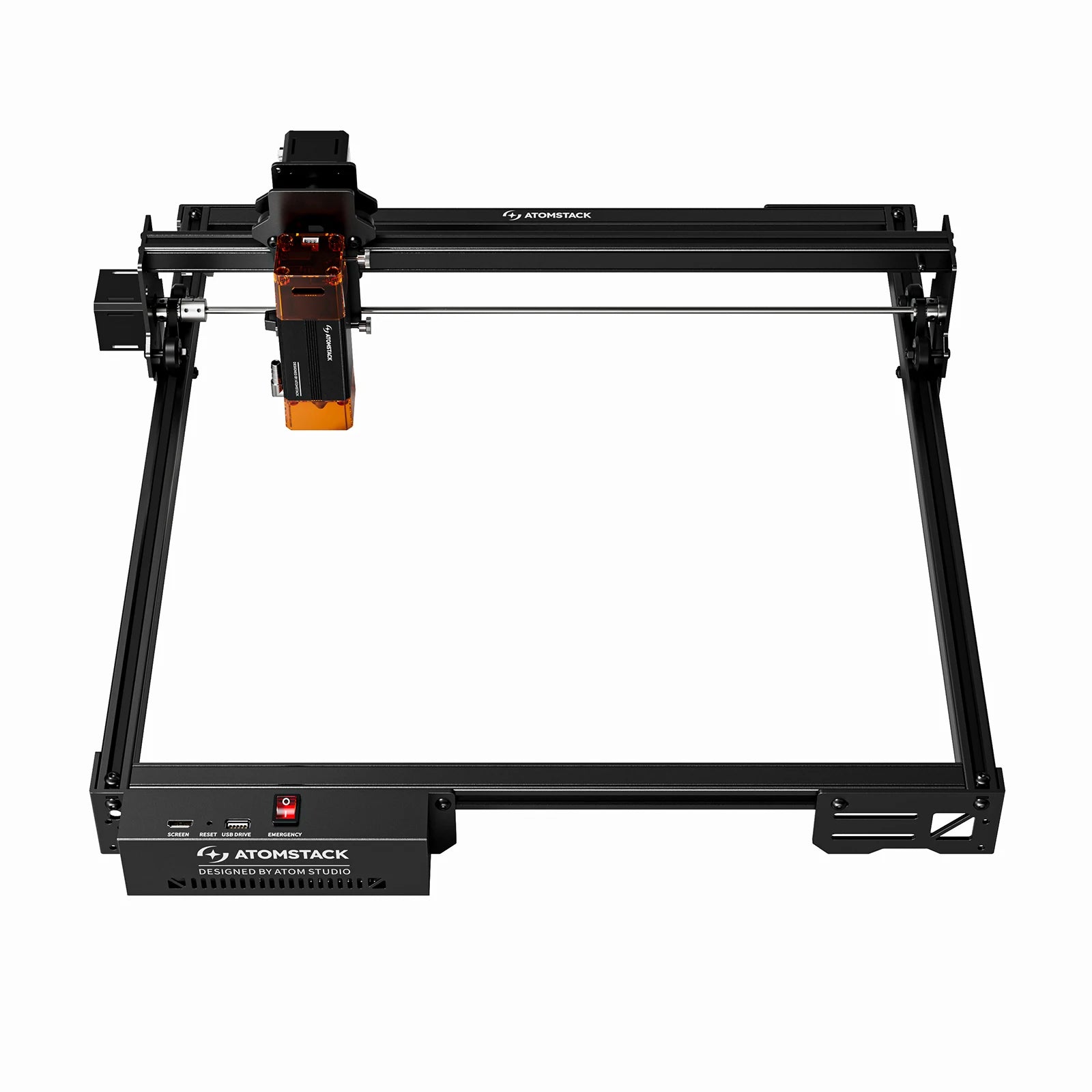

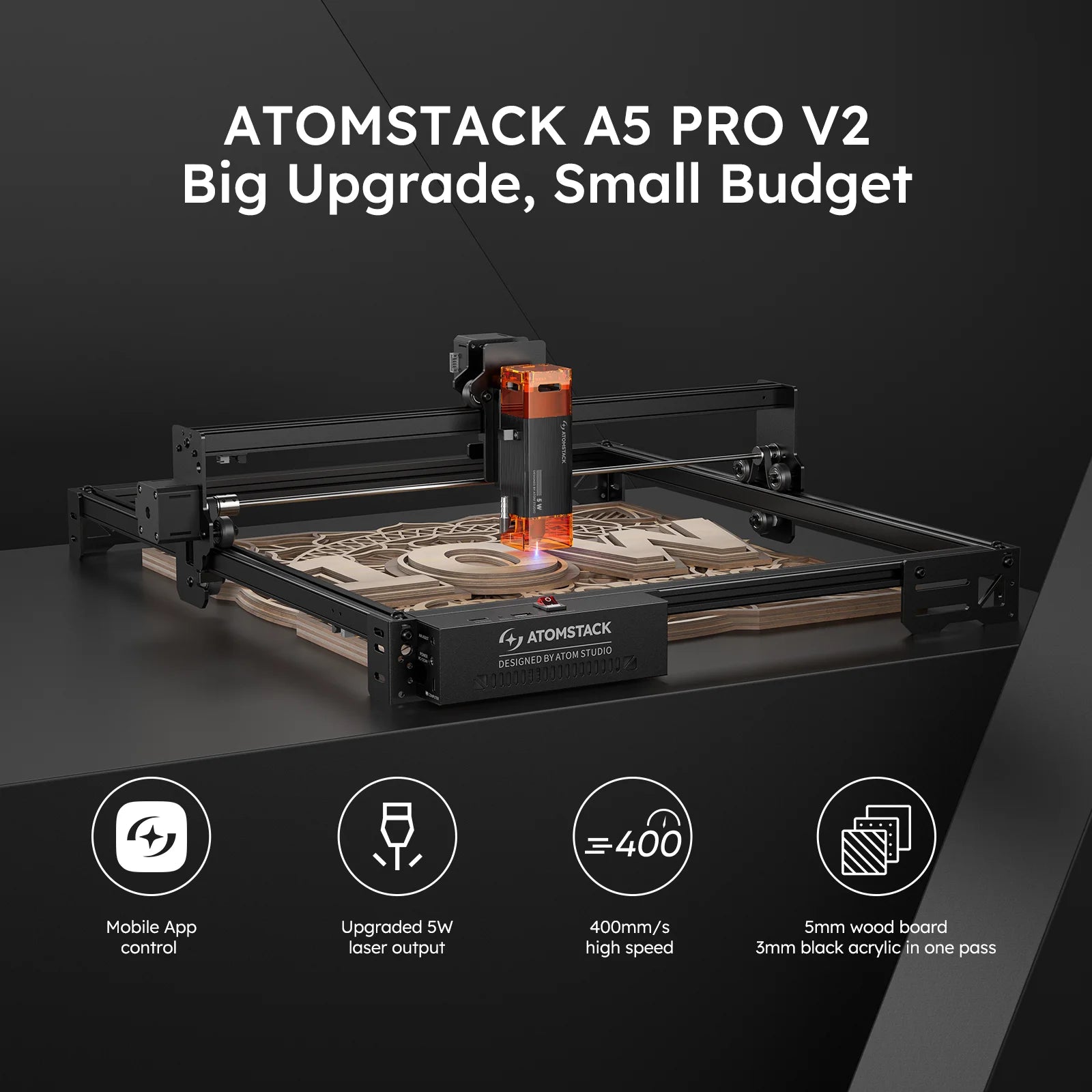

Product model: ATOMSTACK A5 PRO V2

Carving size: 410*380mm

Material that can be carved/cut

Carving materials: wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non reflective

Metal plating and paint coating, 304 mirror stainless steel, glass, ceramic, cotton cloth, slate;

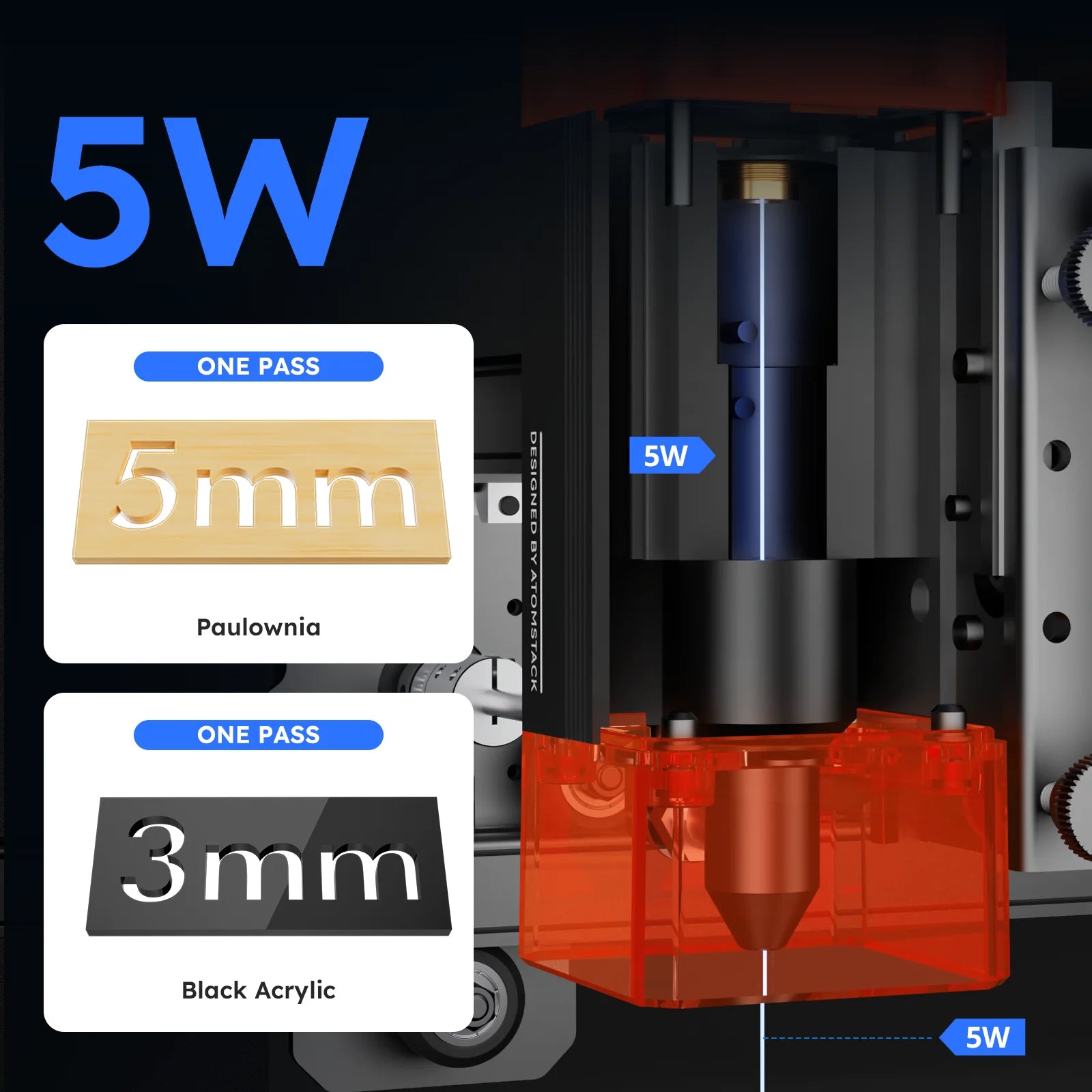

Cutting materials: cardboard, non-woven fabric, wooden board, acrylic, some thin plastic boards, sponge;

Laser electrical power: 40W

Laser output optical power: 5.5-6W

Laser wavelength: 455±5nm

Carving accuracy: 0.01mm

Focusing method: fixed focus laser, no focusing required

Limit switches: 2 (1 for X-axis and 1 for Y-axis)

Laser protective cover: There is a protective cover on the laser to protect the user's eyes, and there is no need to wear additional protective glasses. At the same time, prevent pets from scratching the laser spot

Operating software: LaserGRBL，LightBurn， Support Win XP/Win 7/Win 8/XP/Win 10 systems

Supported file formats NC, BMP, JPG, PNG, DXF,

Data transmission method: usb connection

Power Supply: International Standard Power Input: 100-240V AC, 50/60HZ Output: 12V 3A

authentication: CE FCC RoHS FDA PSE

matters needing attention:

When operating the laser engraving machine, please install the laser protective cover properly; Wear goggles when not installed properly.

Do not touch the laser with your hands, as it may burn your hands.

Please avoid causing strong impact on the machine.

Children under 14 years old are prohibited from using this product, and children over 14 years old require adult supervision.

Do not apply the laser directly to any specular reflective object, as this may cause injury or burn to the operator.
